Single-colour variant

One filament, branding painted by hand. Works on any FDM printer; the files and settings here are set up for a Bambu Lab A1 mini.

Uses M2×7 screws.

Files

The lid top is closed except for one window at the back for the Ethernet jack. The front wall has the USB openings.

Previews

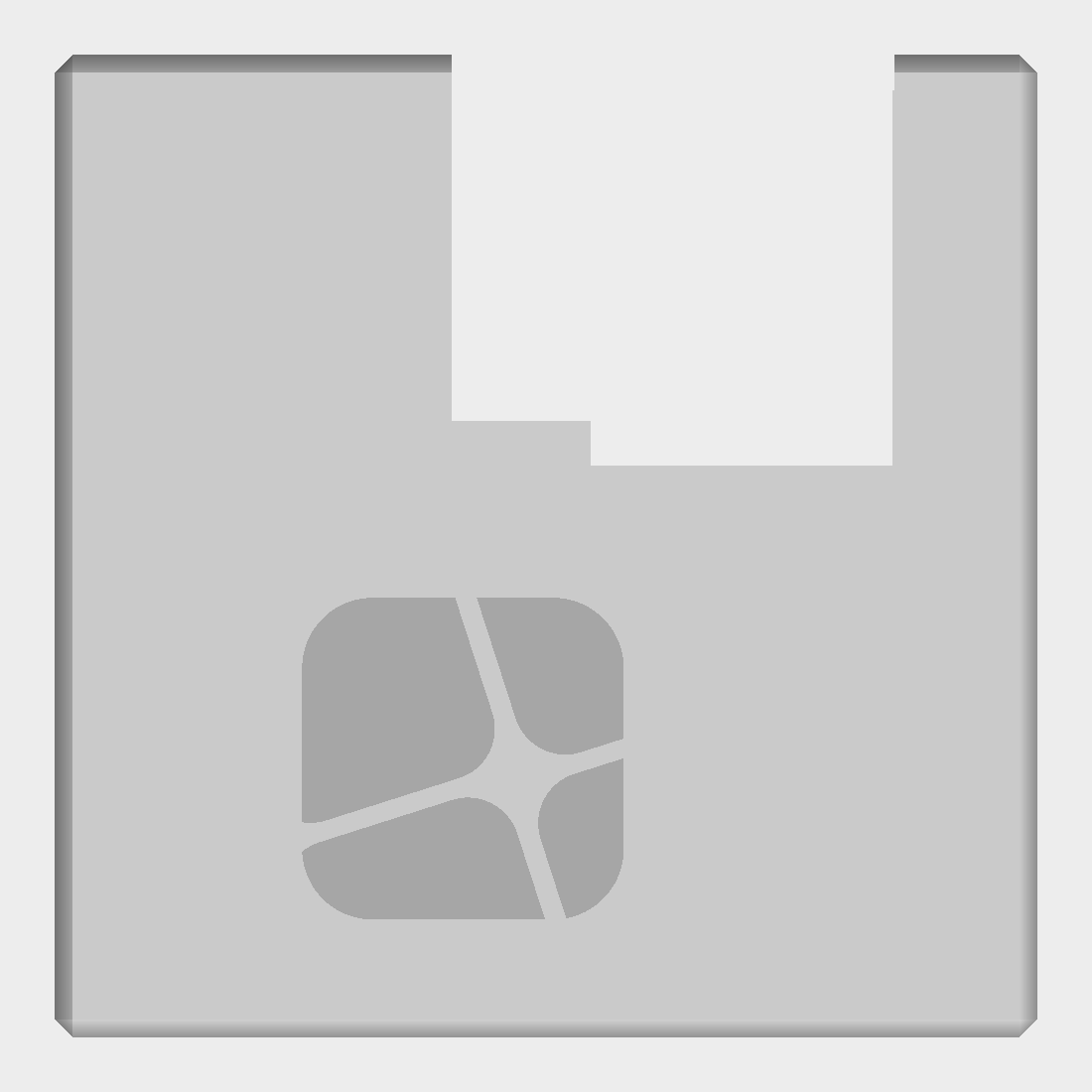

Lid, top	Lid, left wall

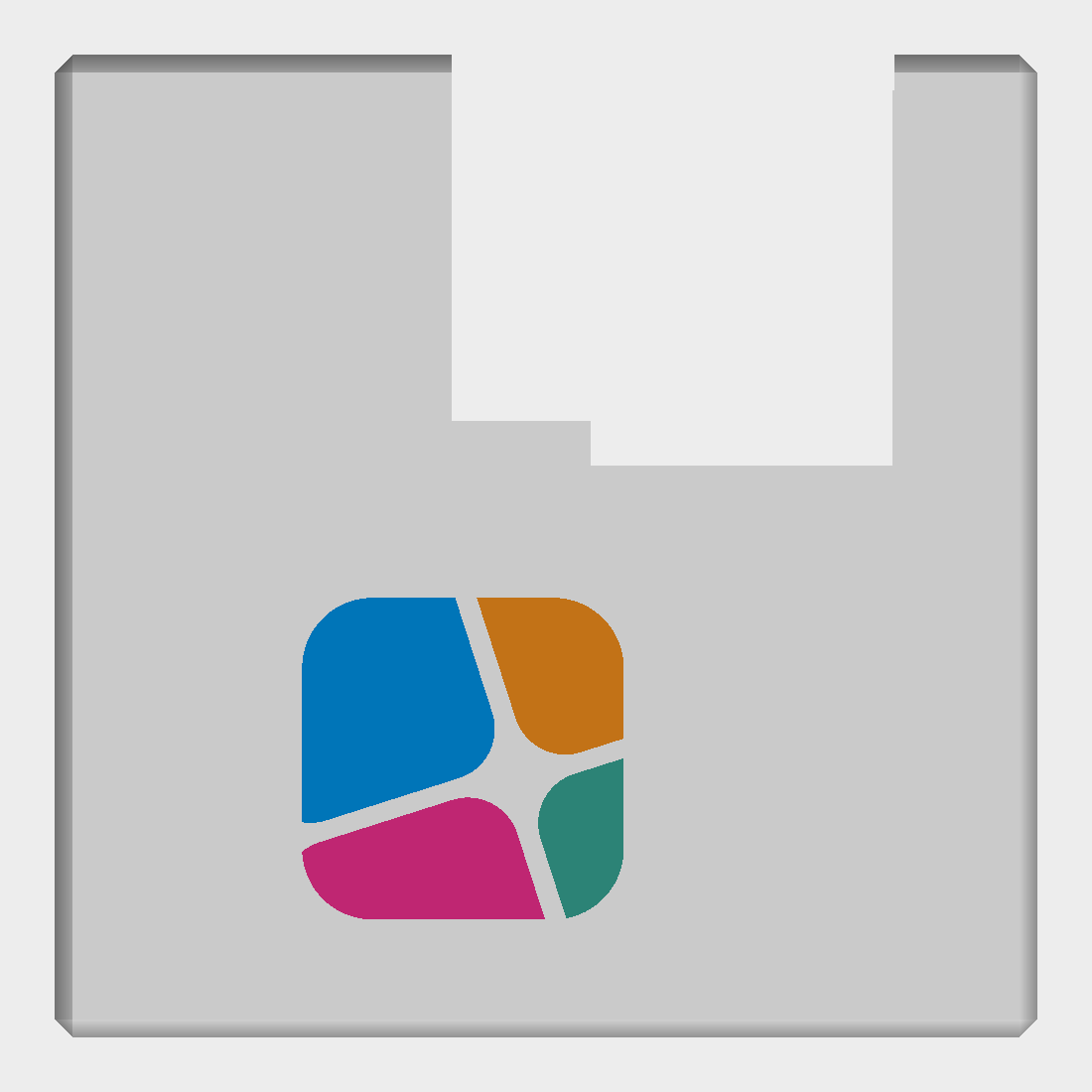

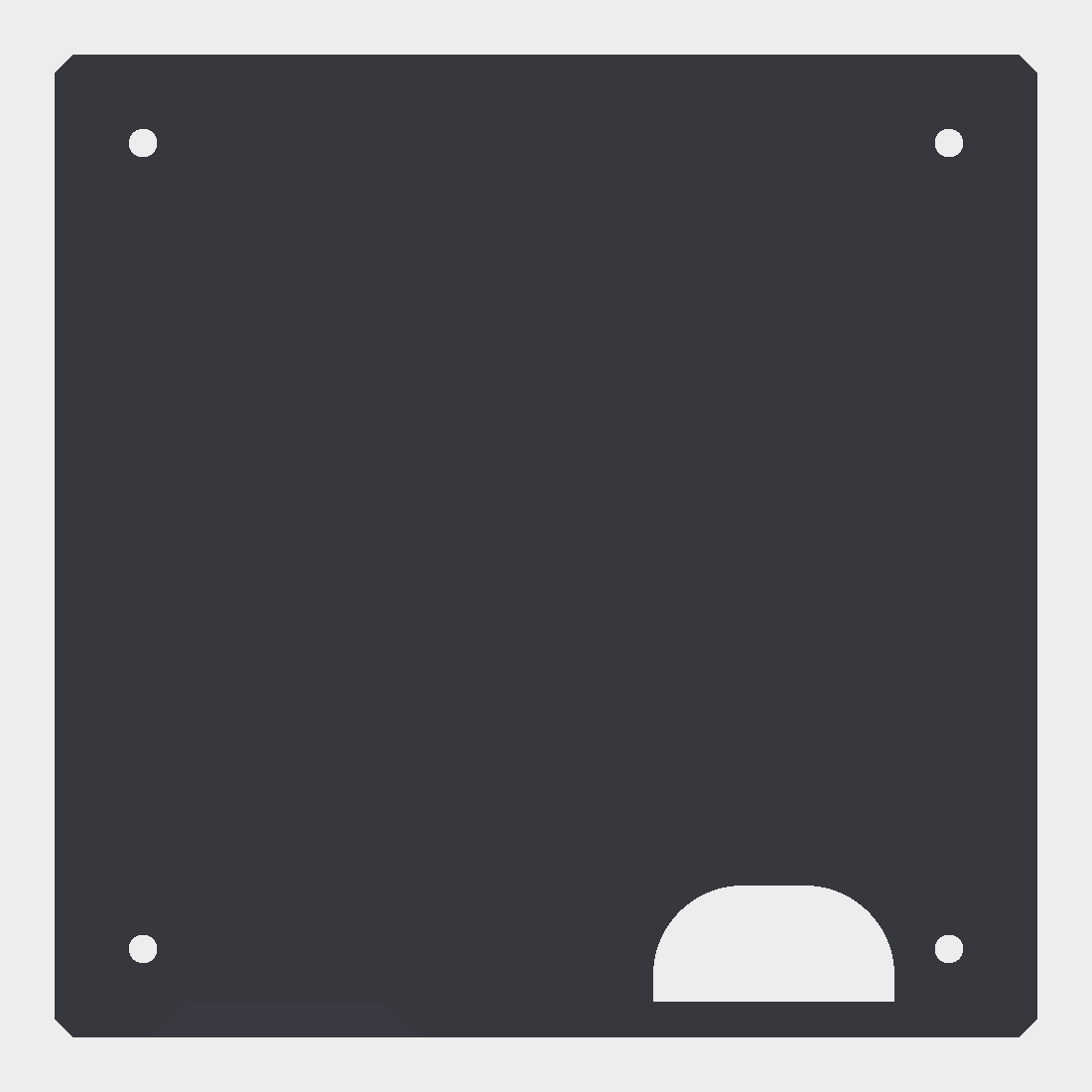

Bottom, top	Bottom, angled	Paint guide

The renders show the lid in white and the bottom in black. The paint guide shows where each brand colour goes.

Orientation

Print both parts as they are. Do not flip the lid.

The branding is a 0.6 mm recess. Flipped onto the bed, the symbol recess would be a 0.6 mm roof over nothing. Top face up, the recesses are open pockets in the last layers, which print cleanly and hold paint.

Slicer settings (Bambu Studio)

1. Printer and process: Bambu Lab A1 mini 0.4 nozzle, 0.16 mm Optimal or 0.20 mm Standard. Filament: PLA.
2. Lid supports: on. The 2 mm top plate (about 1980 mm²) hangs 12.2 mm above the bed, so it needs supports underneath, inside the lid. Use Tree (auto) or Normal, "On build plate only", with a small top Z distance (0.15–0.2 mm). A few small tabs inside also get support. The support marks end up inside the lid, not on the branded surface.
3. Wall loops: 3 or more. The side wordmark is only 0.6 mm deep in a 2 mm wall.
4. Bottom: sits flat on its floor, no rotation. About 350 mm² of small overhangs and chamfers; try without supports first and check the preview.

Other slicers: the same settings apply. The only critical points are the orientation and the supports under the lid's top plate.

Painting

Colour suggestion: white lid, black bottom. On a dark lid, paint the wordmark white instead.

• Use a fine-tip acrylic paint pen or a small brush. Paint into the recesses, then wipe or lightly sand the flat surface to remove overspill. The 0.6 mm edge keeps lines crisp.

• Wordmark (both side walls): black on a white lid, white on a dark lid.

• Symbol tiles, brand colours (as in the paint guide):

  Position	Colour	Hex
  top-left	blue	#0094E9
  top-right	orange	#F5901E
  bottom-left	pink	#F23091
  bottom-right	teal	#38A696

• Pens: a 0.7–1 mm opaque paint marker fits the recesses (for example Posca PC-1MR, Pen-Touch extra fine, or Uni Paint PX-20). On white PLA the colours go on in one or two thin coats. On dark PLA, paint the tile recesses white first.

• Seal with a matte clear coat if the case will be handled a lot.

Status

The files are checked for watertightness, orientation, volumes and clearances. They have not been sliced or printed yet. Check the preview in your slicer, and print a test first.

Licence

See ../ATTRIBUTION.md. CC BY 4.0, based on the work of MartinFaustMayer.
